Priced per (1) cable.

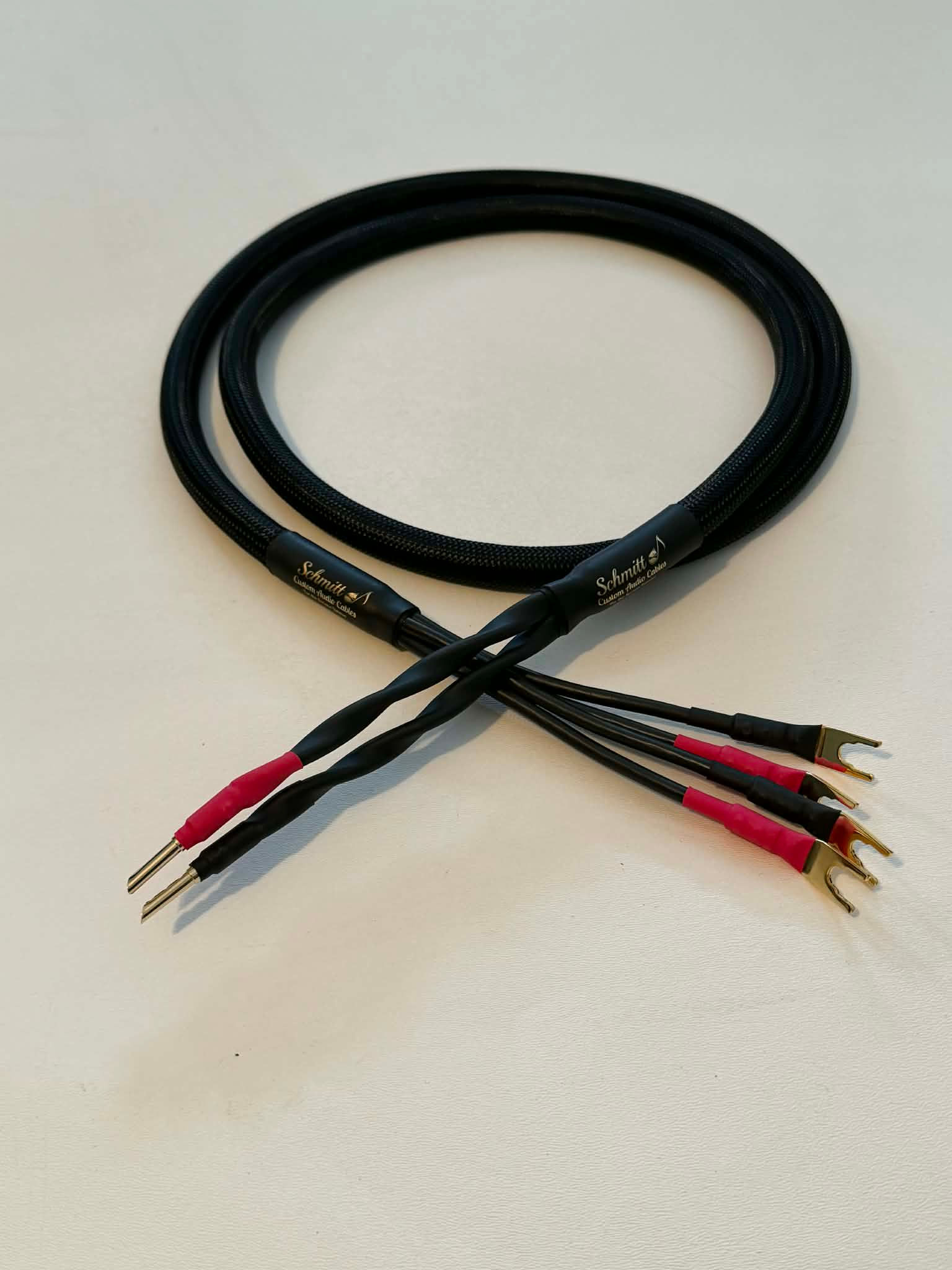

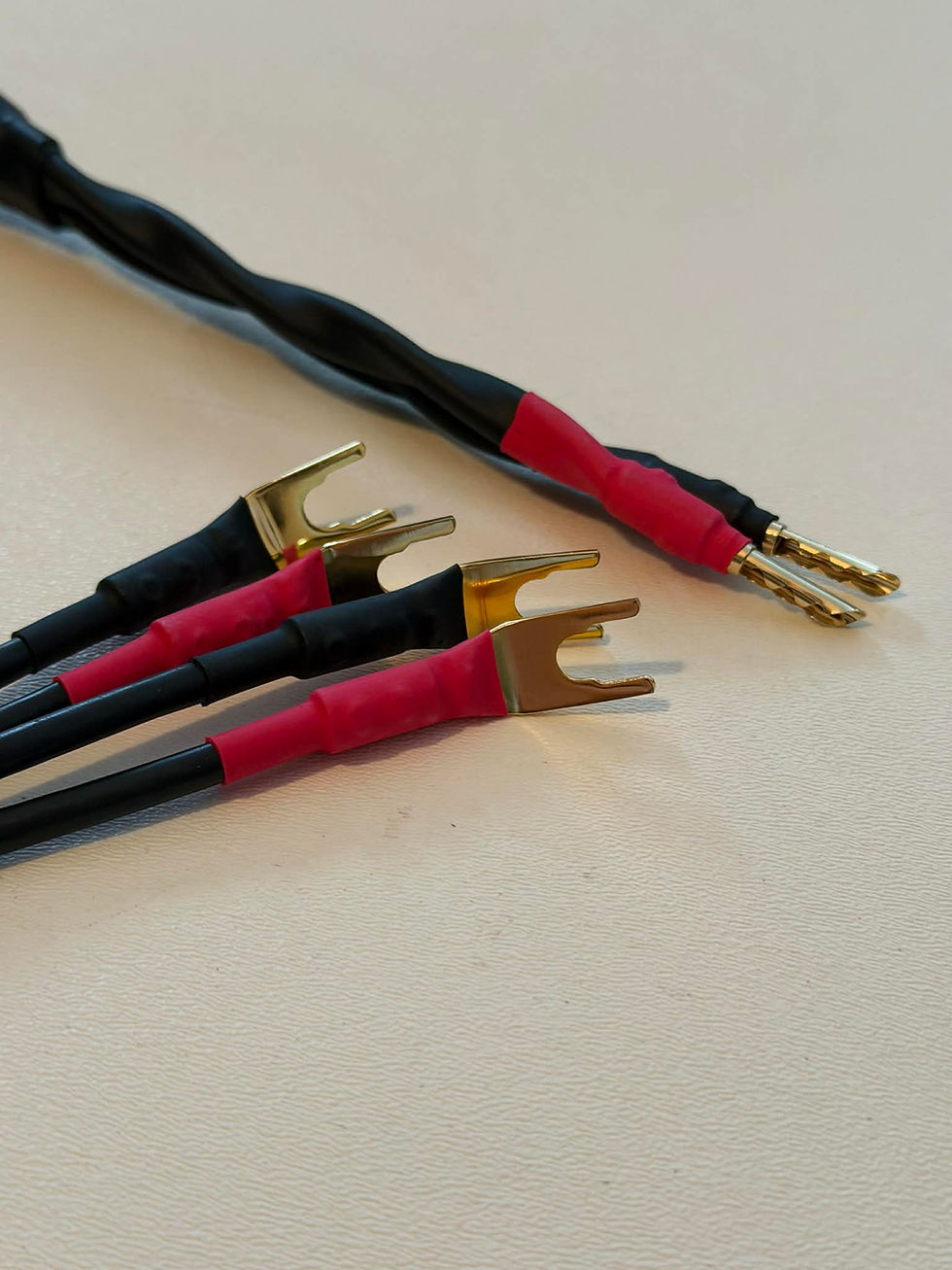

Schmitt Custom Audio High Definition Bi-Wire Speaker cables consist of Mogami W3104 4/12 AWG speaker cable with your choice of color, length and connectors. Dual screw double gold plated copper 8mm-6mm stepped spades and gold plated BFA bananas.

For Furutech  gold plated miniature barrier strip spades or gold plated pin please leave a note at checkout.

Specifications:

• Part No.: W3104

• No. of Conductor: 4

• Conductor Details: 7/50/0.12 OFC (bare)

• Conductor Size: 3.96mm² (#12AWG)

• Insulation Ov. Dia.(mm): 4.5Ø (0.177"Ø) PVC

• Jacket Ov. Dia.(mm): 14.5Ø (0.571"Ø)

• Jacket Material: Flexible PVC, Matte Black

• Weight per 153m (500Ft) Roll: 48kg

• DC Resistance (20ºC) 0.005Ω/m(0.0015Ω/Ft)

• Inductance (1kHz, 20ºC): (Refer to the figures shown in the capacitance data.): 1-2: 0.6µH/m (0.18µH/Ft) 1-3: 0.6µH/m (0.18µH/Ft)

• Voltage Breakdown: Must withstand at DC 500V/15sec.

• Insulation Resistance: 10000 MΩ × m Min. at DC 125V, 20ºC

• Emigration of Jacket Material: Non-Emigrant to ABS resin

• Applicable Temperature: -20ºC to +70ºC (-4ºF to +158ºF)

• Roll Sizes W3103/W3104: 100m (328Ft) / 250m (820Ft)

• Standard: UL13 CL2 75ºC

Details

• Manufacturer:  Mogami

• MPN: W3104-00

• Model Number: W3104

Prices start at $110/6ft cable and under with free Shipping in the USA.
