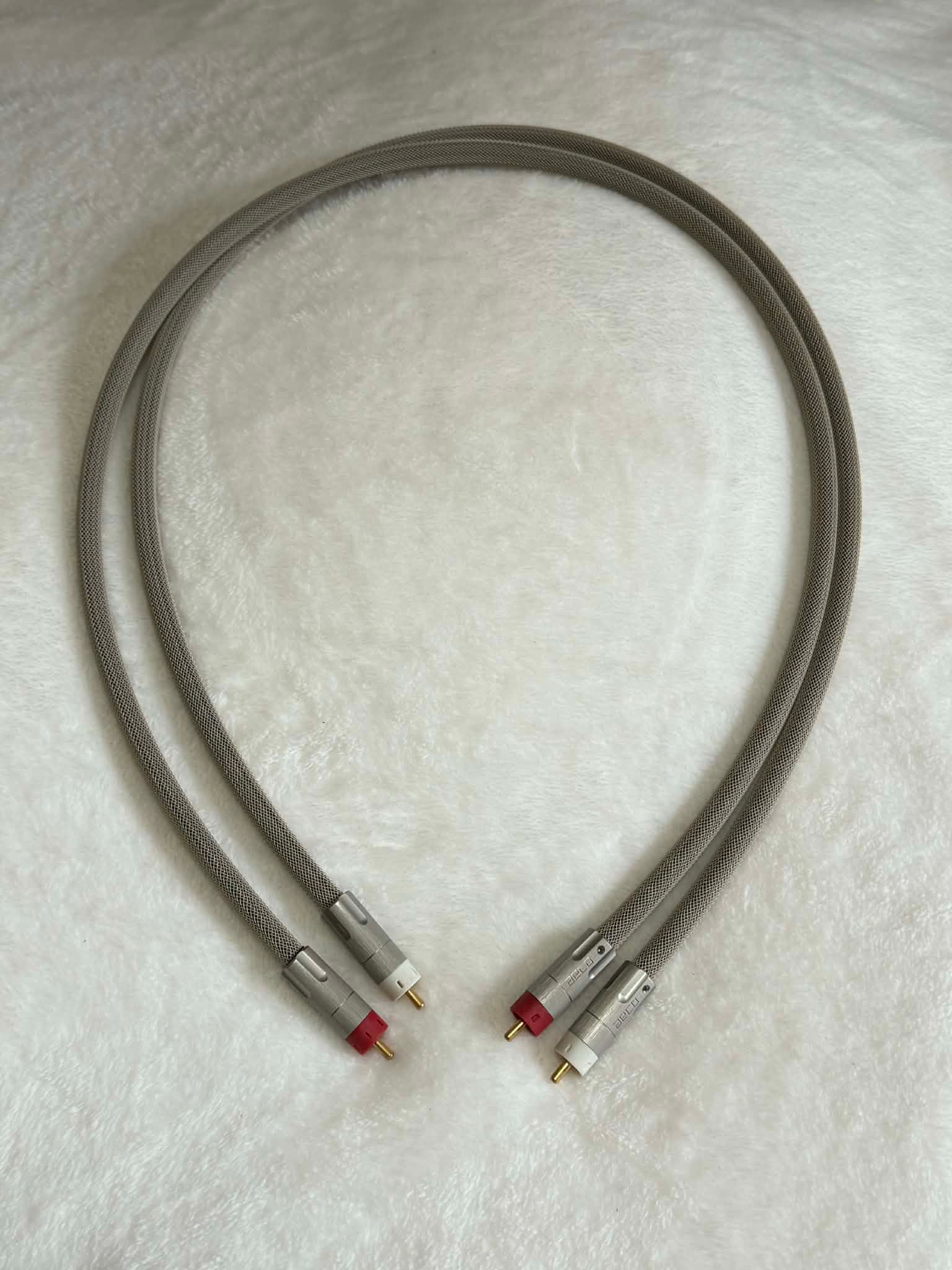

Schmitt Custom Audio Genuine Taiwan Star Line Aeco RCA mated with Mogami W2497 interconnect cable For the... "Serious Listener"

Aeco ARP-4045 RCA Connectors
 feature high-purity Tellurium Copper (over 99% copper) for the contact pin and high-purity copper (over 99.5%) for the grounding latch. They utilize a low-mass, single-point conduction design to minimize resistance and inductance during signal transmission


Star Line Aeco ARP-4045 RCA Connectors
Specification
Materials & Construction
Contact Pin: Tellurium Copper (C14500).
Grounding: High-purity Copper (C1100).
Plating: 10u" Gold plating directly over copper (no nickel base).
Insulation/Body: Glass fiber reinforced nylon.
Shell: Brass alloy (C3604) with satin nickel plating.
Sleeve: POM (polyacetal).
www.aeco.tw
Electrical Performance
Contact Resistance: < 0.3 mOhm.
Conduction Type: Single-point contact to reduce capacitance and inductance.
Physical Dimensions
Total Length: 46.4 mm.
Maximum Outer Diameter: 13.7 mm.
Cable Capacity (with sleeve): Up to 8.5 mm diameter.
Cable Capacity (without sleeve): Up to 10.5 mm diameter.

Mogami W2497 Cable Specifications
The W2497 utilizes a patented Double-Cylindrical structure designed to deliver rich detail and minimal signal loss.
Capacitance: 67 pF/m (at 1kHz) — Excellent for low-loss signals.
Impedance: 75 Ohm characteristic impedance — Suitable for both analog audio and digital SPDIF connections.
Outer Diameter: 8.0mm (0.315") — A thicker, beefy cable that requires specific high-quality RCA connectors.
Conductor: Neglex III PCOCC (Pure Copper by Ohno Continuous Casting) for maximum audio fidelity.
Resistance: DC Resistance is 55 mOhm/m

Prices start at $130 for a stereo left and right pair at 0.5 meters in length.
